Project BMX is a visionary quest to seamlessly blend electric innovation with authentic BMX geometry, crafting an unparalleled ride experience tailored for cyclists who need a little more cool from their bike. The ethos was to make no sacrifices to the ride feeling or look of traditional BMX - by using a nimble 24” design for agility and fluidity, and stealthy integration of the technology to maintain traditional aesthetics, Project BMX does just that.
RIDES LIKE A BIKE
Many eBikes place their motors and batteries in positions that are easiest and/or cheapest, with little regard to the effects on the rider experience. Frame geometry and weight distribution are pivotal in electric bike design, optimizing rider comfort and bike handling. The carefully calculated angles and weight placement on Project BMX lower the center of gravity, enhancing stability and control, especially at higher speeds or during tight maneuvers. This balance allows for a natural riding posture and facilitates intuitive control, improving the interaction between rider and machine.
KEEPING IT REAL
eBikes can be big, bulky, and a little bit ugly. We’ve painstakingly retained the iconic BMX spirit, seamlessly nestling the battery within the seat and embedding a potent mid-drive motor into the frame. The outcome? A sophisticated, perfectly balanced old-school BMX aesthetic that’s guaranteed to draw attention. Project BMX is crafted with premium Chromoly frame and fork tubing courtesy of TANGE. It’s not just a ride but a robust statement of quality.
| RANGE: | Up to 60 km / 37 miles with Pedal Assist |
| SPEED: | Up to 36 kph / 23 mph Pedal Assist + Throttle |
| WEIGHT: | 20.5 kg |
| MODES: | 5-Speed modes |
| MOTOR: |
Bafang M560 Mid Drive Motor |
| RANGE: | Up to 25km / 15.5 miles |
| FIRMWARE: | 500W / 250W |
| VOLTAGE: | 48V |
| RATED POWER: | 750W (LIMITED BY FIRMWARE) |
| WEIGHT: | 3.3KG |
| GEAR: | STEEL |
| CRANK ARM: | 17OMM |
| BATTERY: |
36V 9.6 AH SAMSUNG 48X 21700 |
| WH (WATT-HOUR): | 345.6 WH |
| WEIGHT: | 2KG |
| LOCK: | BUILT-IN LOCK POINT |
| CHARGE: | 3 HOURS |
| LED Display: | |
| SPEEDOMETER: | KPH / MPH |
| LED REAR LIGHT CONTROL: | 3 MODES |
| IP RATED: | X5 |
| WALK ASSIST MODE: | YES |
| FRAME SET: | Lightweight & Strong Chromoly Frame |
| MATERIAL FRAME: | CHROMOLY |
| TESTING: | ISO4210 |
| ADJUSTABILITY: | 140MM POST ADJUSTMENT |
| HEADSET: | INTEGRATED |
| WEIGHT LIMIT: | 130 kg |
| SADDLE MATERIAL: | NYLON + CARBON FIBER |
| SADDLE CERTIFICATION: | ISO 4210 |
| SADDLE ADJUSTABILITY: | ANGLE + FRONT TO BACK |
| WHEELS | Spokes 24”/Skyway Tuffs 24” |
| BRAKES: | Mechanical Disk 160mm 24” (front V brake on Skyway Tuff wheels) |
| TYRE: | KENDA ROAD SLICK 24” X 2.10 |
| INNER TUBE: | 24X1.9/2.125 SCHRADER VALVE |
DOMESTIC
Skateboards
Free Shipping on all our boards, sent through registered courier. Our boards must be handled as dangerous goods due to lithium battery regulations which may require a mandatory overnight holding period, which can affect shipping times.
Accessories
Shipping cost at flat fee of 30 AED. All accessories are sent via courier and can take 1-2 days to arrive depending on the region.
We are unable to ship to PO boxes or temporary accommodation. Please provide us with a home/work address with telephone number and ensure your billing/shipping address is correct.
INTERNATIONAL
We ship all over the GCC check with us for shipping rates!
Otherwise please check here to see if you have a local distributor in your country.
If you do not have a local distributor in your area and it's not listed above please contact ask@evolveskateboards.com.au for assistance.
Introducing a distinctive 36V battery system intricately designed to seamlessly integrate with the Project BMX drive system. The battery pack achieves an ideal harmony between range and power, discreetly nesting within the saddle to preserve the classic BMX cruiser frame aesthetic.
This innovative system facilitates effortless battery swapping, empowering riders to expand their adventures with added range.
Crafted in collaboration with VELO, the bespoke saddle seamlessly merges traditional adjustability, comfort, and innovation. It incorporates a built-in rail and lock mechanism, providing a secure home for the Evolve 36V Battery.
Using a mid-mounted motor in Project BMX goes far beyond maintaining aesthetics. This kind of motor offers substantial benefits over hub drive systems found on cheaper electric bikes.
The mid-drive allows for optimal weight distribution for handling, a smoother and more natural pedal assist feeling, and eliminates the drawbacks of adding rotational mass to the rear wheel. They are also quieter, and being connected directly to the crank increases the motor’s efficiency to make the most of the bike’s range.
The frame design prioritises both comfort and bike control. Collaborating with Tange, a revered name in the bicycle industry with over 90 years of expertise in quality chrome, multi-tubing, and high-end engineering, ensured excellence.
Crafted from Chromalloy, the frame achieves a delicate balance, offering lightness without compromising strength. The mellow 70-degree head tube angle facilitates smooth turns, complemented by a 26-inch standover height for user-friendly access, suitable for individuals five foot four and above.
The sleek, waterproof LED display keeps riders informed about the ride while being discreet enough to maintain the overall aesthetics of the simple BMX style.
Monitor speed, battery status, and riding mode with ease and use the effortless controls to switch between pedal assist and throttle control on the go.
Skyway Tuff Wheels, proudly crafted in Baldwyn, Mississippi, embody American craftsmanship. Utilising a unique Zytel Nylon blend, they stand as the firmest plastic wheels.
With 45 years in the industry, Skyway is integral to retro BMX, seamlessly enhancing Project BMX's aesthetic. Our hub mount, compatible with a disk rotor on Skyway Tuffs, achieves a timeless appearance while enabling the use of Front and Rear Hydraulic Disc Brakes.
Hold the throttle at stops, peddle the streets. This thing is sick and fun. Nothing but joy from me.
So when you get on and pedal the bike pulls you forward like quite a bit quicker then you'r pedaling.
The sensation is fantastic! You kinda feel like a super hero : ) I mean look at it too. It's stream lined.
It feels great and it looks great. People ask about it every time we go out. So I finally bought one and my wife liked it so much, she kept it and bought me another one! No kidding. Riding together is a lot of fun for us.
I have both the Hadens and I absolutely love them!! So now I find myself having a hard time deciding which superior Evolve toy I should take for a spin. Thank you Evolve for the killer boards and now this rippin BMX bike! You guys get it right every time. Cheers to knocking it out of the park.
Riding the (first?) Project BMX in Japan (Chrome / Spoked) has made me the unofficial mascot of Osaka streets. People stop mid-slurp of their ramen and stare like I just rode out of an anime intro. At the conbini, they ask if I'm testing some secret government project. I mean, who wouldn't? This bike rockets through Japanese streets so fast, I'm convinced it's powered by pure wasabi and the spirit of a thousand cherry blossoms. It turned me from "average guy on a Mama-chari" to local kids calling me a "Rocal BMX Regend!" Honestly, I'm pretty sure I deserve a cape, a theme song, and maybe even a mascot. This isn't just a bike, it's a two-wheeled boss that commands respect everywhere it goes! Seriously though... it's so much fun!
First of all, this is amazing. such a fun ride and look. Its size is perfect my for hight (5'11) and it rides with such speed. because i'm a lighter rider, i can get up to 26mph with this thing shredding all over the place.
next iteration of this i'd love to see. (these are dreams not realistic)
- full crabon fiber body, with wires still hidden as is
- air suspension
- a slightly more comfortable saddle with breathing hole
- the speedometer wire to come from the top side, instead of the bottom, maybe replace the power button with wire out side (so that it doesn't stretch)
- a more modern hip bell
- better handle bar grips
- an easier way to pop the battery in and out. the current metal clamp at center is just not cutting it.
(i'd pay 5k for a bike with those upgrades)
thats all i can think of right now.
overall, an amazing bike for the price, exactly the kind of fun ride i want. and great job evolve!!

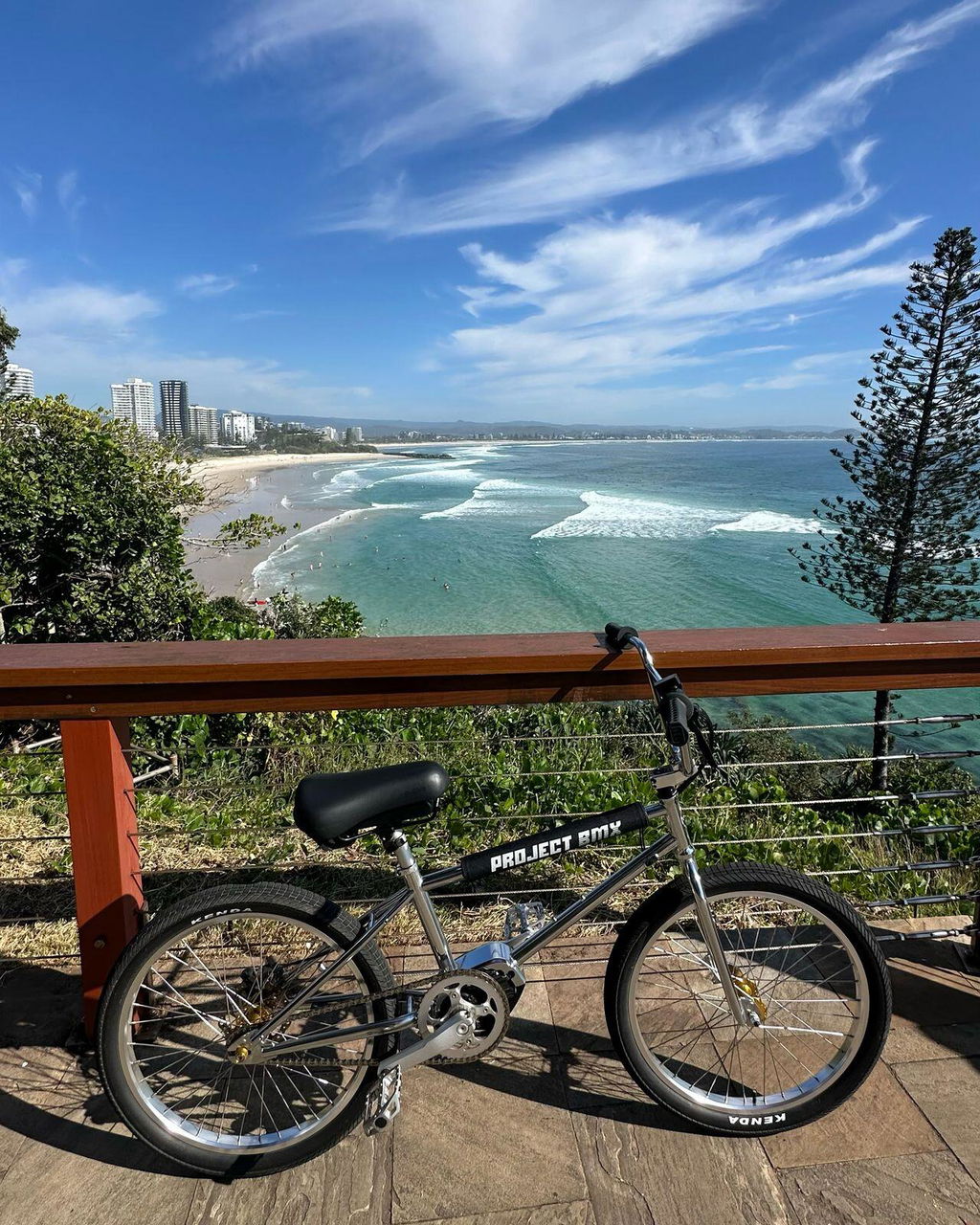

I am IN LOVE with my chrome spoked project BMX. I no longer use the car on the weekends...
The bike is so light and rides super smooth. It makes me feel so cool. And THE SOUND!!
I've been having fun with the 5 speed modes - I use 2 for zipping through pedestrians on chill beach footpaths, and throw a 4 or 5 when racing cars on the traffic lights.
This thing climbs steep hills like nothing! Love that I can pedal and throttle at the same time.
Battery charges fast, easy to swap and small to put on my backpack when I lock the bike.
Discovering new paths... And turning any commute to an adventure. Hope you get to experience it!
